INSTALLATION SmartMoto Exhaust Servo Eliminator

Products covered: SRE-001, SRE-010, SRE-005, SRE-009, SRE-004, SRE-013, SRE-008, SRE-003, SRE-012, SRE-007, SRE-002, SRE-011, SRE-006

The idea of the whole procedure is to have access to the electrical connector of the servo motor. Disconnect it and connect the Servo eliminator in its place


We have used a Kawasaki ZX10R for the installation, however these instructions will be applied to all models.




Please read the steps carefully before starting the installation and note that the ignition must be turned OFF during the whole procedure



STEP 1: Remove the rear and the front seat to have access to the servo motor and its connectors

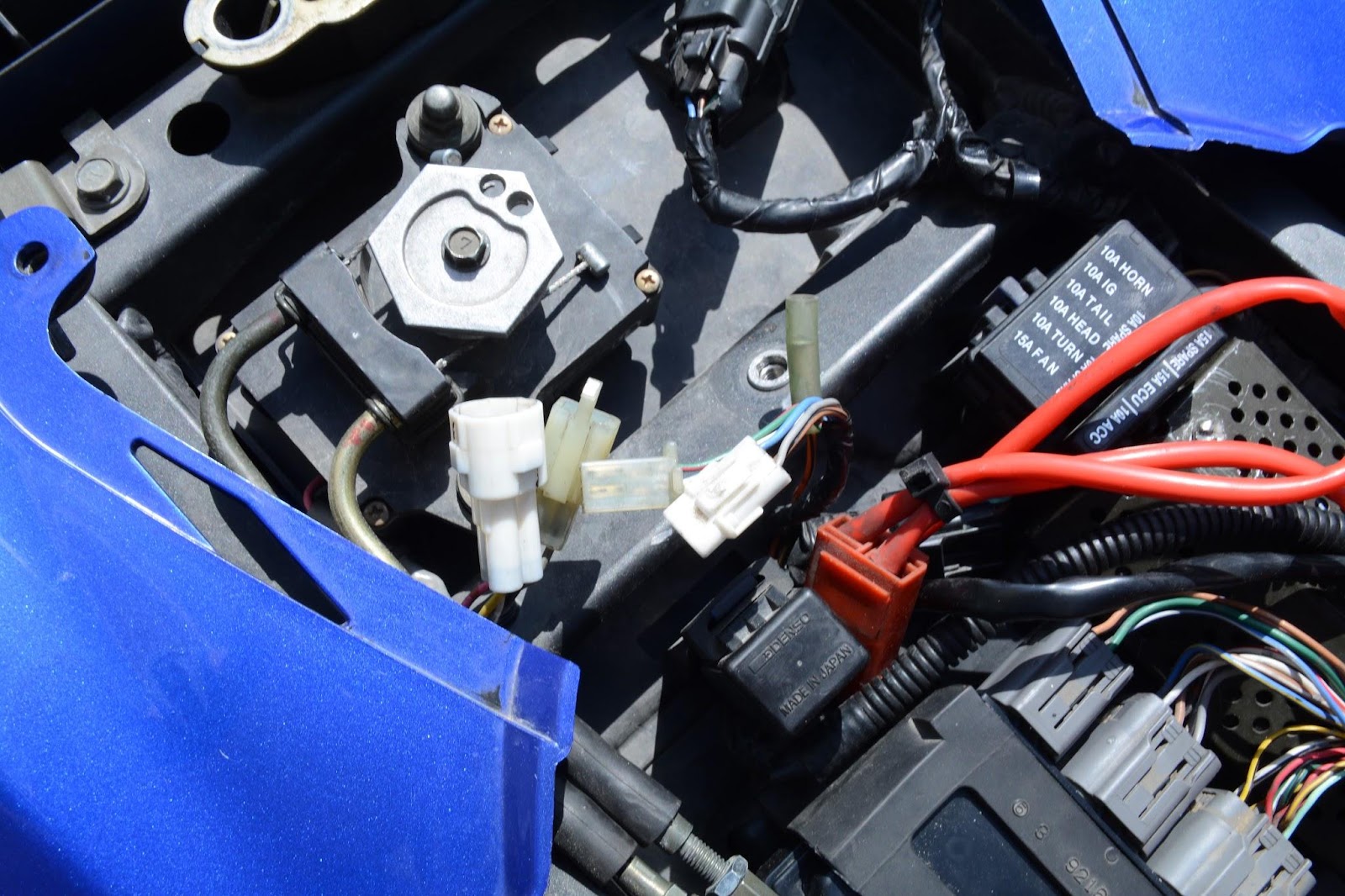

STEP 2: Disconnect the servo motor connectors

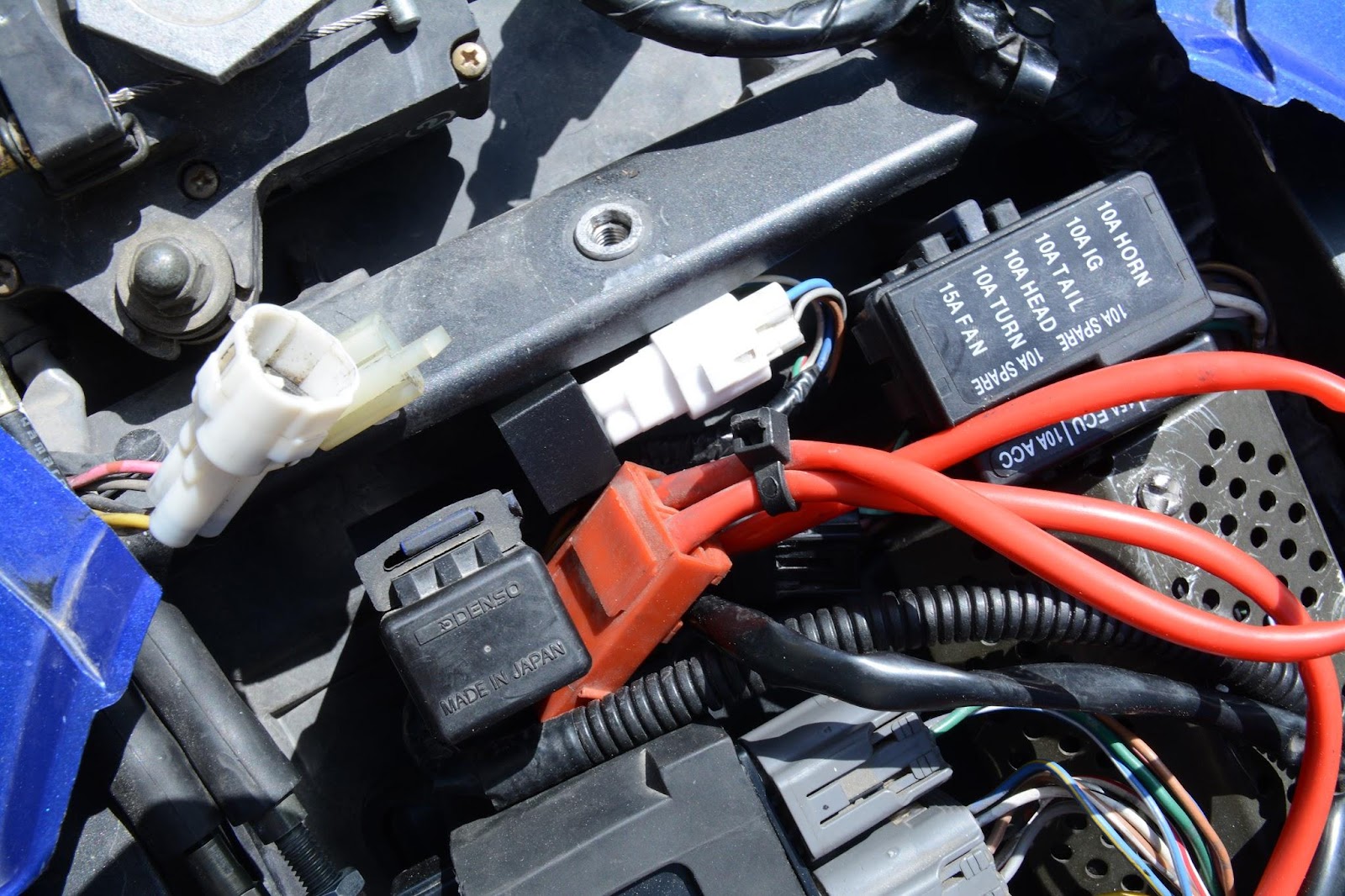

STEP 3: Connect the Servo eliminator to the connectors where the servo motor connectors were connected







STEP 4: Find a suitable place to fit the servo eliminator and wiring.





You are free to remove the servo motor and/or exhaust valve and their cables from the motorcycle



STEP 5: Put everything back in place



Thank you very much.




If you have any suggestions for improvement or if you wish to help, feel free to contact us through the contact form.
