INSTALLATION PAIR VALVE Removal KIT Kawasaki W800 PLE-225

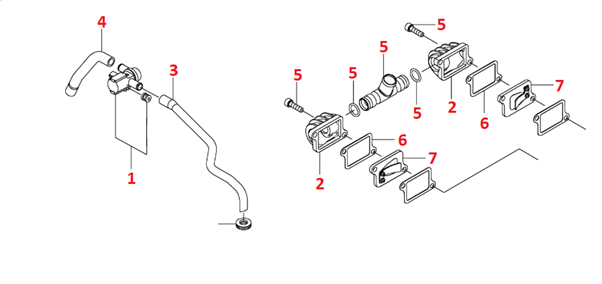

Step 1 : Remove the fuel tank according to the owner’s manual. Locate The PAIR valve (1) and the covers (2).

Step 2 : Disconnect the PAIR valve (1) from the wiring harness and connect the electronic eliminator in its place.

Step 3 : Follow the pipe (3) that goes from the PAIR valve (1) to the covers (2) and the pipe that goes to the air box (4) and unplug them. Seal the air box nipple with the provided rubber cap.

Step 4 : Remove the PAIR valve (1), the pipes (3)(4) and their associated hardware (5) from the motorcycle.

Step 5 : Remove the covers (2) and the flanges under them (6).

Step 6 : Replace the two stock flanges (6) with the provided flanges found in the kit, place the block off plates over the flanges and reed plates (7), use the provided stainless steel bolts and washers to install the plates and tighten each bolt to 10Nm of torque,  don’t forget to use thread locker.
