Installation PAIR Valve Removal Kit BLP-225

Parts:

Throttle body vacuum pipe cap x 2

Airbox rubber cap x 1

PAIR valve covers block off plates x 2

Stainless steel bolts x 4

Stainless steel washers x 4

The idea of the whole procedure is to remove the PAIR valve solenoid, plug the PAIR vacuum pipe on the throttle body with the provided vacuum pipe cap, plug the airbox port of the PAIR system with the airbox cap and install the provided block off plates to the engine valve covers.

This kit will let you remove the PAIR system from your motorcycle completely.

Please read the steps carefully before starting the installation and note that the ignition must be turned OFF during the whole procedure

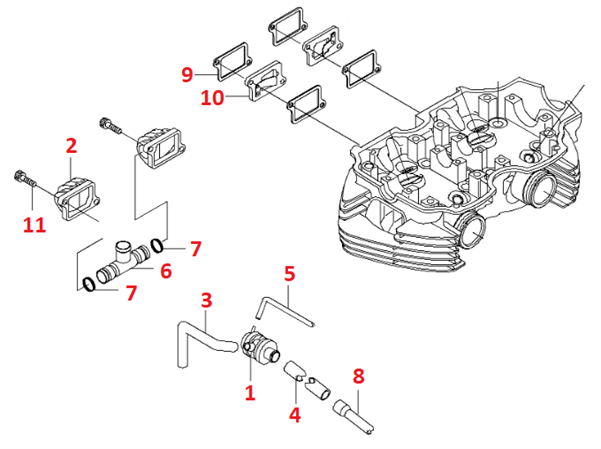

STEP 1: Remove the fuel tank. Locate the PAIR valve (11) under the airbox and the PAIR system hoses connected on the cylinder head and airbox.

STEP 2: Disconnect the PAIR valve vacuum pipe from the throttle body vacuum port and use the provided throttle body vacuum port cap to cover it.

STEP 3: Disconnect the pipe that goes from the PAIR valve (1) to the airbox port. Unplug the PAIR hose (9) from the airbox and use the provided blanking cap on the port by pushing it inside the port.

STEP 4: Remove the parts (5), (2) and (6). Keep the two gaskets (15) in order to use them with the block off plates.

STEP 5: Use the gaskets (15) and align each block off plate holes with the engine valve cover holes. Use the provided stainless steel bolts and washers to install the plates and tighten each bolt to 10nm of torque.

You have bypassed the PAIR system!

That’s it, now you can put everything in place and start the engine.
