INSTALLATION PAIR ELIMINATOR KIT BLP-145 BMW

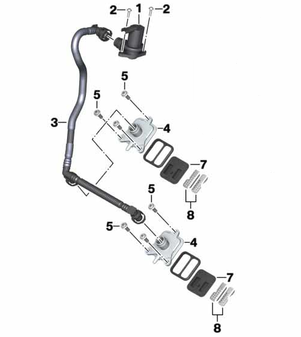

Step 1 : Remove the fuel tank according to the owner’s manual. Locate The PAIR
valve (1).
Step 2 : Unplug the pipe (3) from the PAIR valve (1).
Step 3 : Seal the PAIR valve (1) with the provided
rubber cap found inside the kit.
Step 4 : Follow the pipe (3) that goes from the PAIR valve (1) to the covers (4).
Unscrew the bolts (5) then remove the covers (4), the pipe (3) and the
associated hardware.
Step 5 : Replace the two stock flanges with the
provided flanges found in the kit, place the block off plates over the flanges
and reed plates (7,8), use the provided stainless steel bolts and washers to
install the plates and tighten each bolt to 10Nm of torque, don’t forget to use thread locker.
