INSTALLATION CoolAIR AD Radiator Fan Switch Aprilia RFS-010

Step 1 : Locate the radiator fan relay.

- RSV4 1100 2019-2020, RSV4 1000 2009-2020, Tuono V4 1100 2015-2020, Tuono V4 1000 2011-2014.

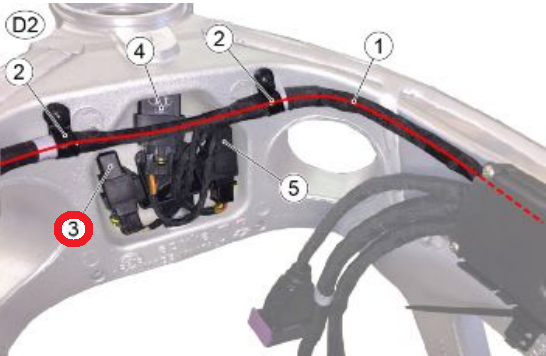

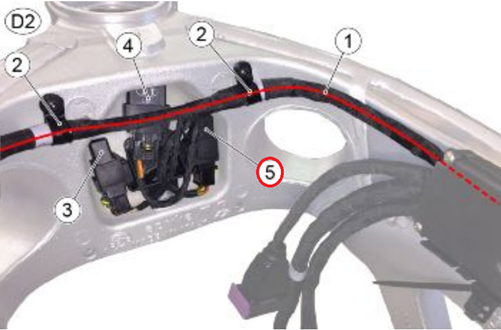

Behind the steering headstock, on the right. (5).

- RSV 1000 R 2004-2010.

Under the RH cover, next to the fusebox.

- Shiver 750 2007-2016, Dorsoduro 750 2008-2016

Under the fuel tank, left side, first front relay (1).

- Shiver 900 2017-2020, Dorsoduro 900 2017-2020

On the left hand side of the filter box (5).

- MANA 850 2007-2016. Under the helmet compartment, right side.

Step 2 : Disconnect the radiator fan relay connector.

Step 3 : Connect the switch connectors, the female connector of the switch to the radiator fan relay and the male connector form the switch to the wiring harness connector.

Step 4 : Install the ring connector of the coolair switch to a suitable bolt on the frame.

Step 5 : Find a suitable place on the motorcycle to secure the swith or install it through a 6mm hole on a panel using the switch rubber boot to secure it.
