INSTALLATION CoolAIR AD manual radiator fan switch Suzuki

Products covered: RFS-006, RFS-005

The idea of the whole procedure is to disconnect the connectors of the radiator fan relay, connect the CoolAIR switch connectors to the connectors, install the ring connector to a frame bolt and attach the switch to a fixed point on the motorcycle with the installation kit.

Please read the steps carefully before starting the installation and note that the ignition must be turned OFF during the whole procedure.

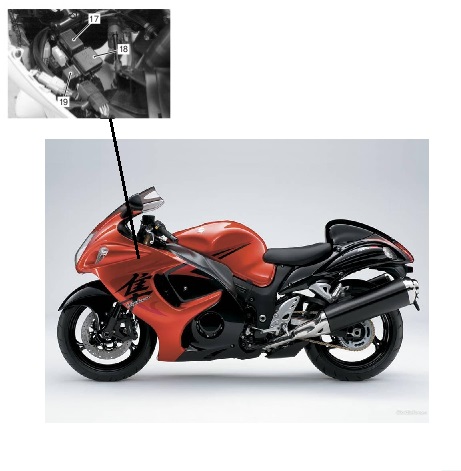

STEP 1: Find the radiator fan relay. On the most Suzuki motorcycles it is found under the left hand side front panel (19) near the dash or under the front seat on some GSXR models.

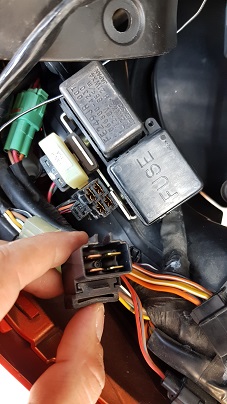

STEP 2: Disconnect the radiator fan relay connector by pressing the tab at the top of the connector and pulling out.

STEP 3: Connect the switch connectors, the female connector to the relay connector and the male connector to the wiring.

STEP 4: Install the ring connector to a bolt on the frame.

STEP 5: Now you can attach the switch either to a fixed point on the motorcycle with a cable tie or through a hole on the fairings by using the waterproof installation kit..
