INSTALLATION CoolAIR AD manual radiator fan switch MV Agusta

Products covered: RFS-005

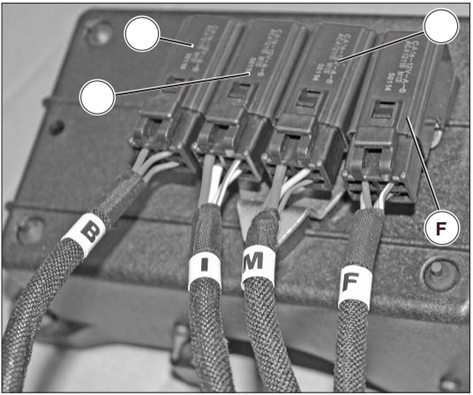

Step 1 : Locate the radiator fan relay.

- F3 800, F3 675, Brutale 800, Brutale 675, Dragster 800, RVS 800

Under the fuel tank, by the battery marked with the letter “F “.

- Turismo Veloce

Under the battery support marked with the letter “F”.

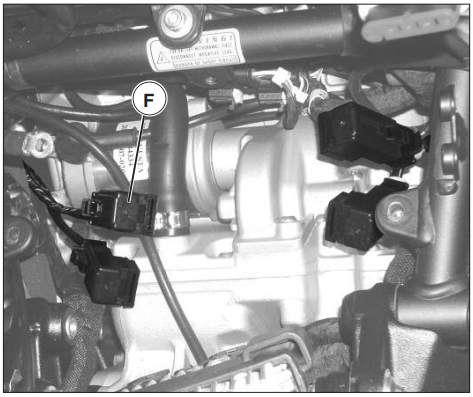

- F4 1000 S / R / RR, Superveloce 800

On the left side of the motorcycle marked with the letter “F”.

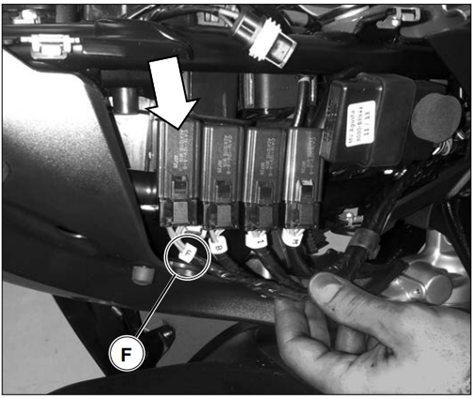

- Rivale 800, Stradale 800

Mounted on the right side of the battery compartment, marked with the letter “F”.

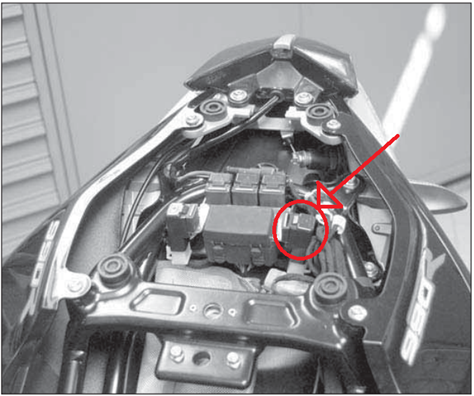

- Brutale 1090, Brutale 990, Brutale 920

Under the pillion seat on the left side marked with the letter “F”.

Step 2 : Disconnect the radiator fan relay connector.

Step 3 : Connect the switch connectors, the female connector of the switch to the radiator fan relay and the male connector form the switch to the wiring harness connector.

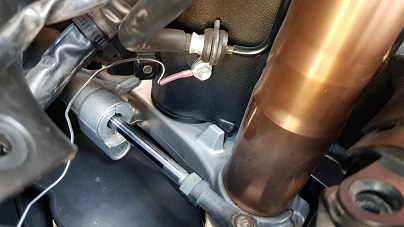

Step 4 : Install the ring connector of the coolair switch to a suitable bolt on the frame.

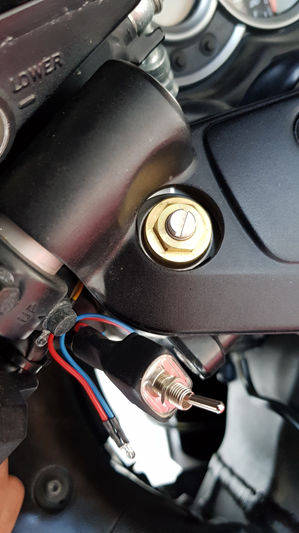

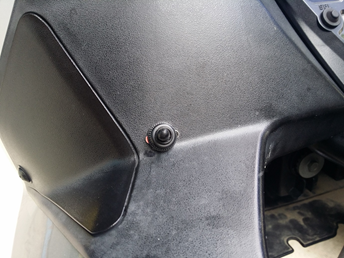

Step 5 : Find a suitable place on the motorcycle to secure the switCh or install it through a 6mm hole on a panel using the switch rubber boot to secure it.
