INSTALLATION AIS VALVE REMOVAL KIT DUCATI

Parts:

1 x AIS valve eliminator

1 x airbox plug

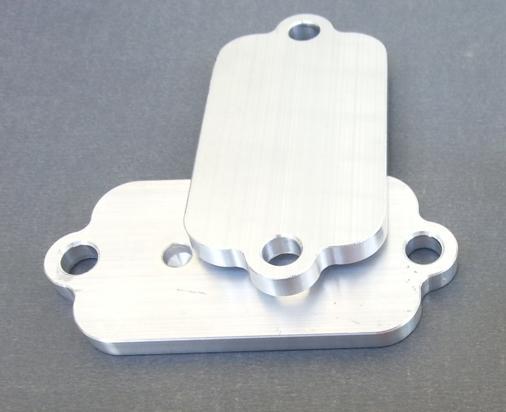

2 x Valve covers Block Off Plates

4 x Stainless steel bolts

4 x Stainless steel washers

The idea of the whole procedure is to bypass the electronic AIS valve of the motorcycle by replacing it with the provided AIS valve eliminator. To remove the AIS valve solenoid from the airbox and cover it with the provided rubber cap and install the provided block off plates to the engine valve covers.

This kit will let you completely remove the AIS system from your motorcycle.

Please read the steps carefully before starting the installation and note that the ignition must be turned OFF during the whole procedure

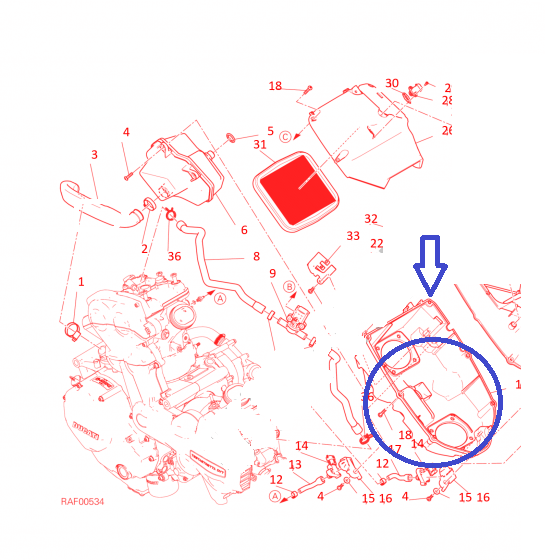

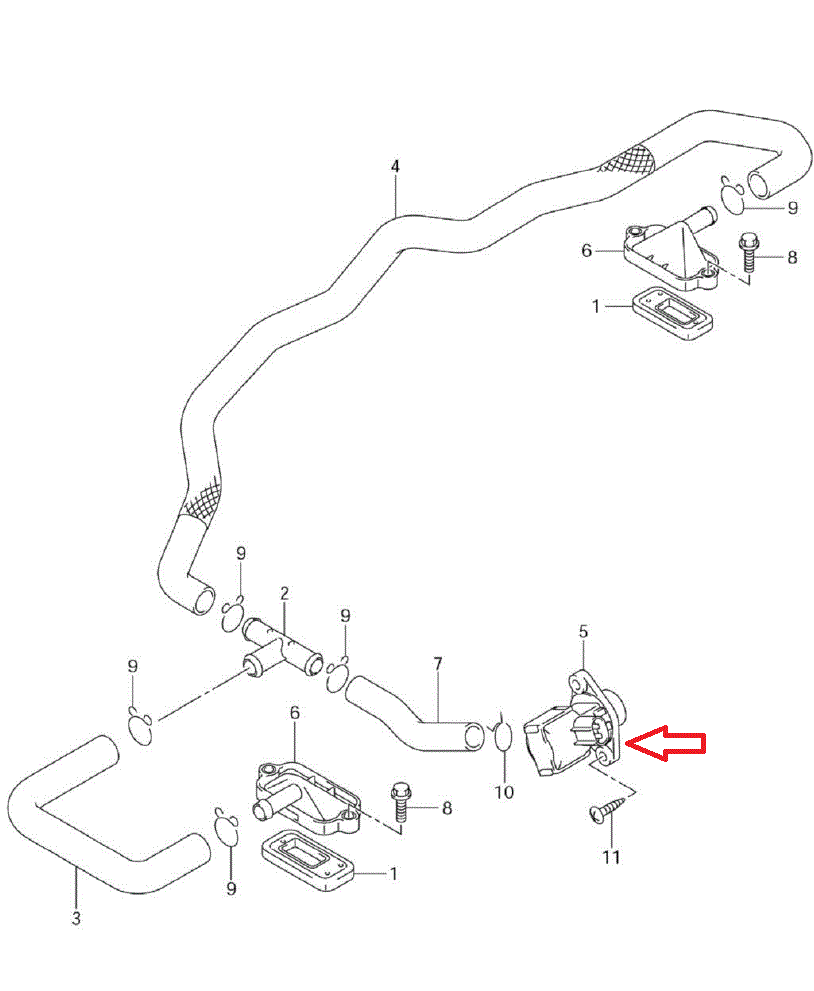

STEP 1: Lift and support the fuel tank. Locate the AIS valve at the front bottom left of the airbox and the AIS system hoses connected on the cylinder heads .

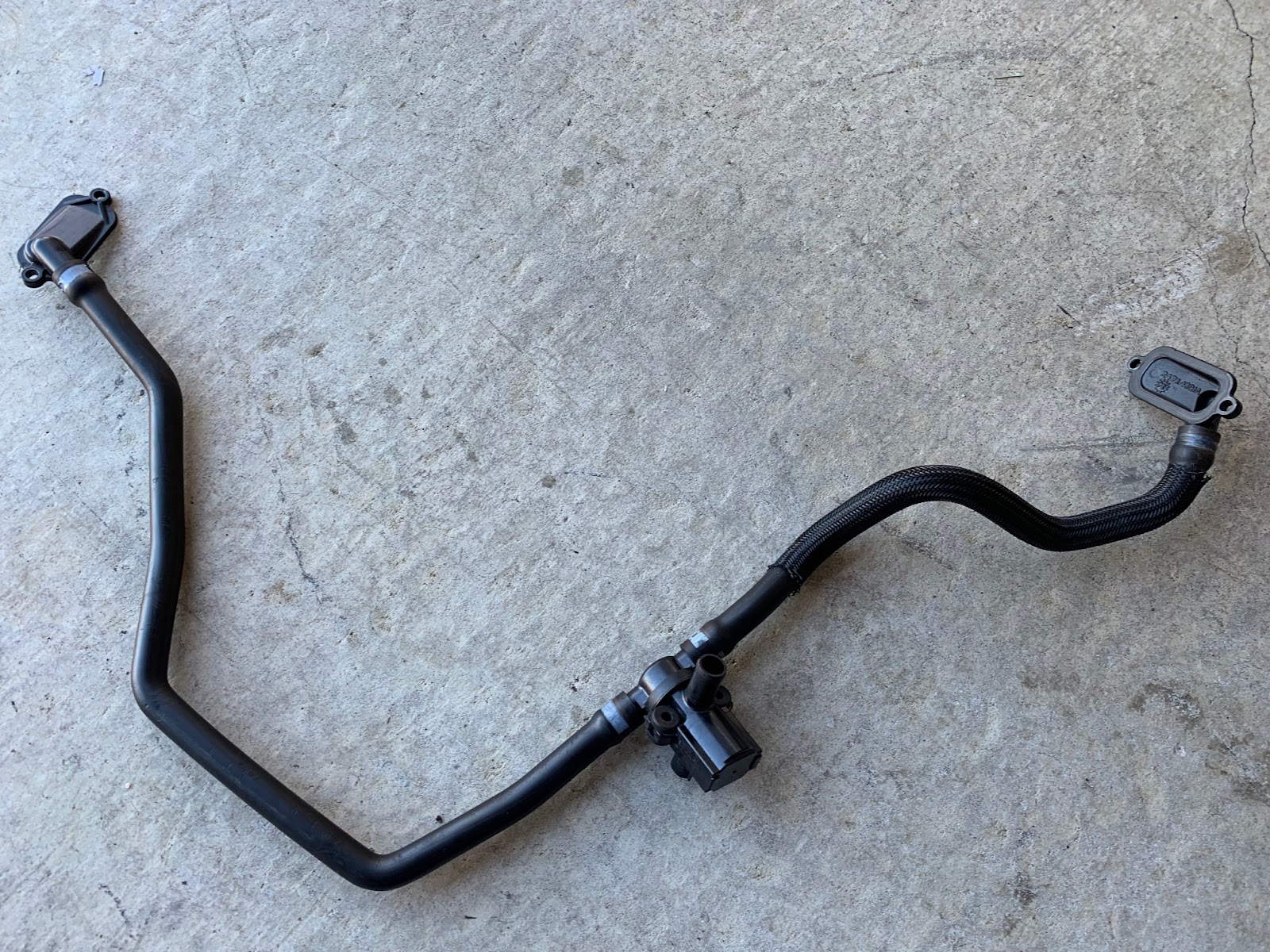

STEP 2: Unplug the AIS hoses from the AIS plates on the cylinder heads.

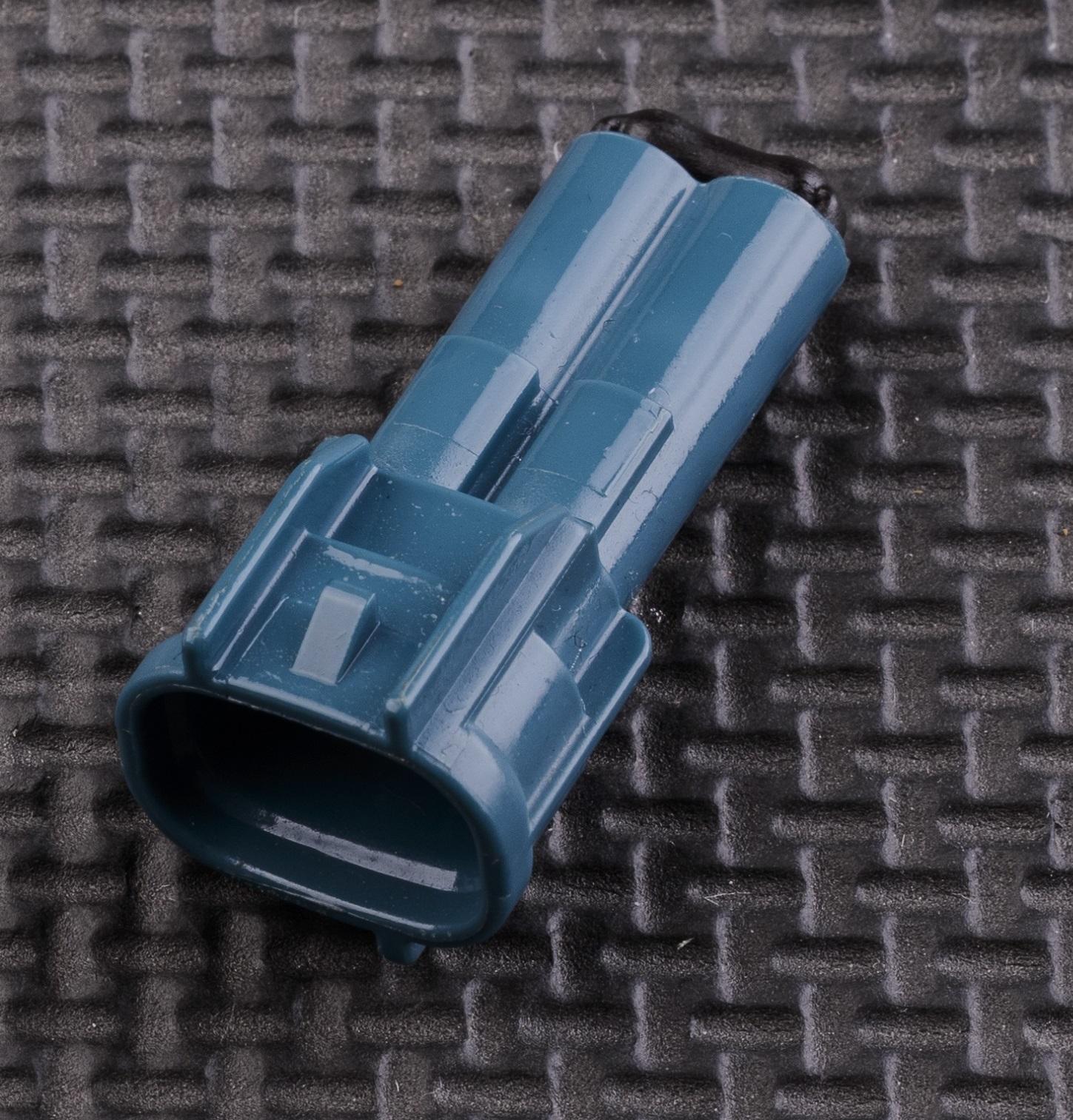

STEP 3: Disconnect the AIS valve connector from the wiring harness and connect the provided AIS valve eliminator in its place.

STEP 4: Plug the airbox hole with the provided rubber cap and secure it by using the retainer piece from the AIS hose.

STEP 5: Locate the two AIS valve plates on the cylinder heads

STEP 6: Unscrew the two bolts of each plate, remove the external plastic AIS plate but leave the internal plate in place.

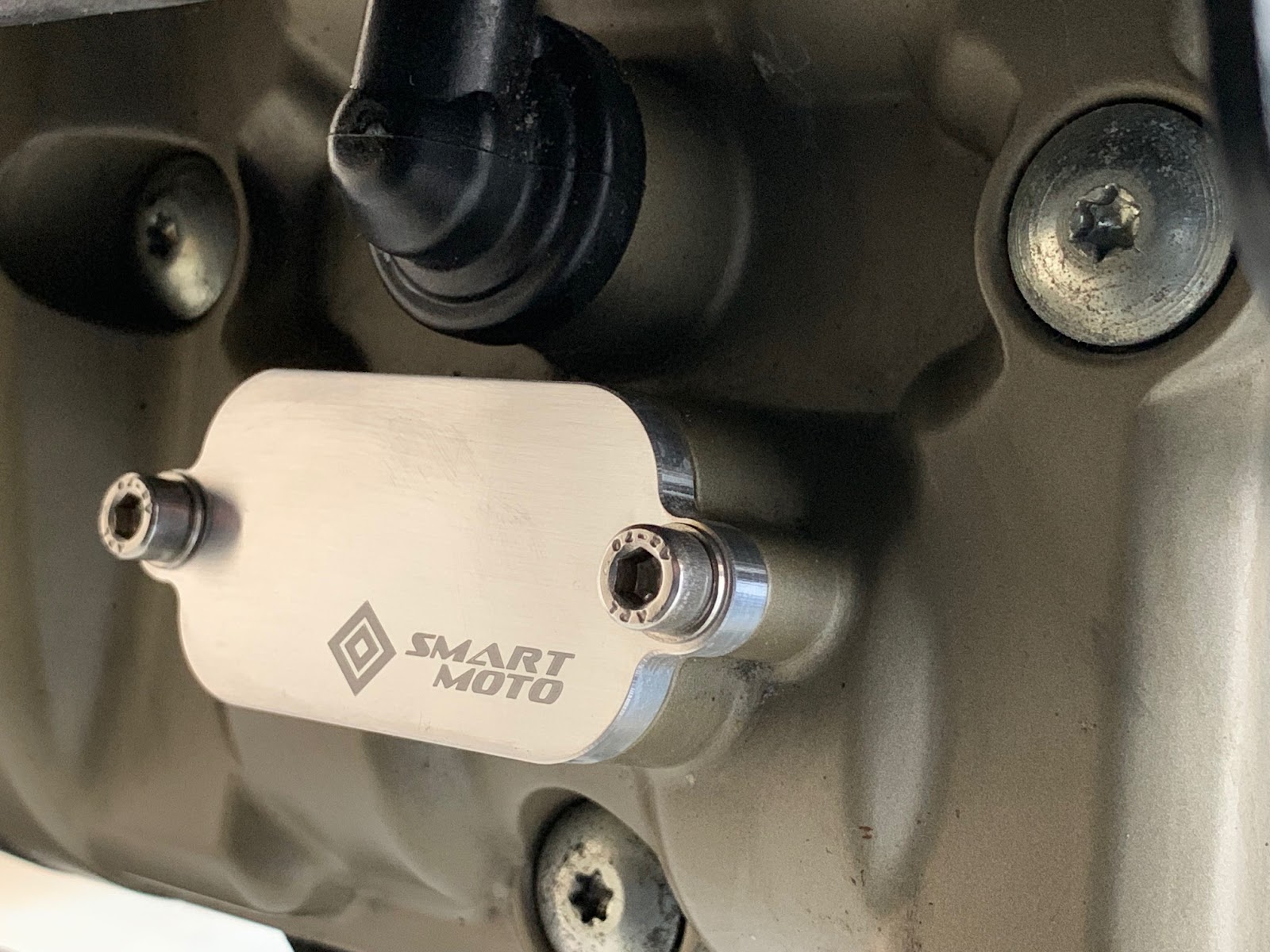

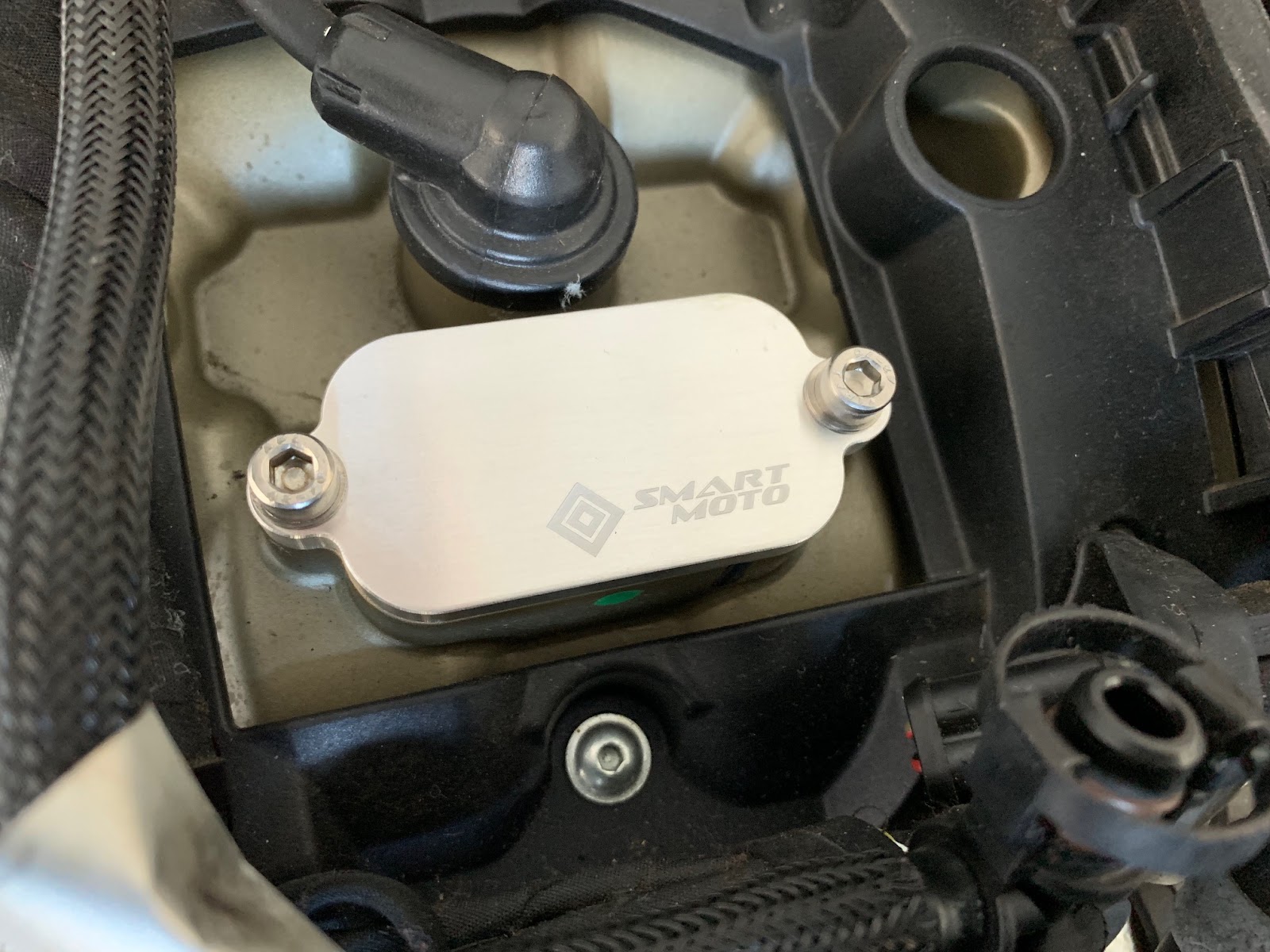

STEP 7: Put each block off plate against the engine valve cover and align the block off plate holes with the engine valve cover holes.

Use the provided stainless steel bolts and washers to install the plates and tighten each bolt to 10nm of torque.

You have bypassed the AIS system!

That’s it, now you can put everything in place and start the engine.
