EVAP System Removal kit installation Ducati PVE-083

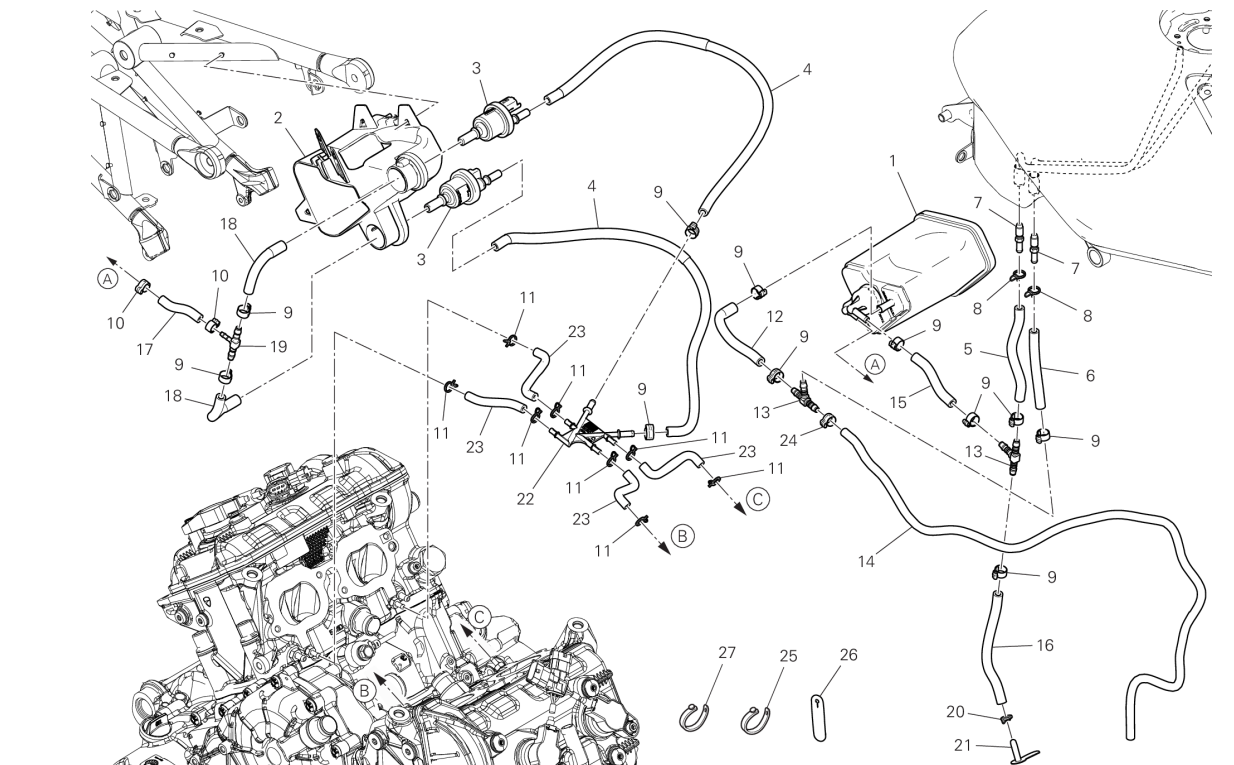

Step 1 : Remove the fuel tank according to the owner’s manual. Locate The EVAP valves (3), the pipes (4)(14)(17)(18)(23) and the EVAP system canister (1).

Step 2 : Disconnect both the EVAP valves (3) from the wiring harness and connect the provided electronic eliminators in their place.

Step 3 : Follow the pipes that go from the EVAP valves (4)(23) to the cylinders and disconnect them.

Step 4 : Seal the nipples with the provided rubber caps.

Step 5: Remove the EVAP valves (3), the pipes and their associated hardware and the canister (1) from the motorcycle.

Step 6: Reroute the pipes (5)(6) from the fuel tank to the ground or to a catch can.
